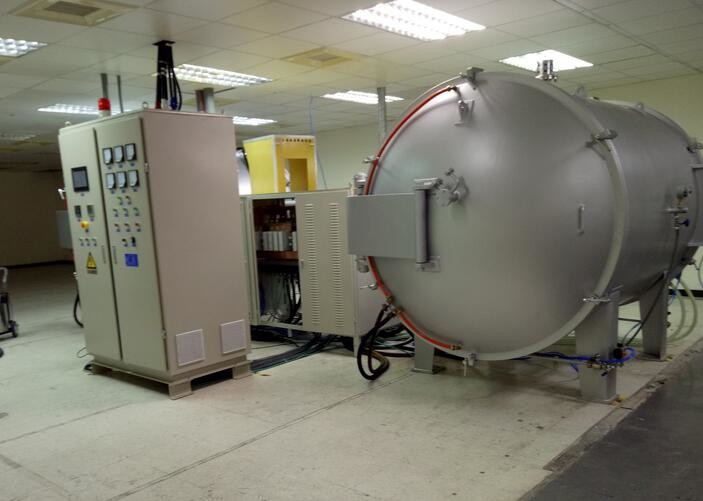

3000C Horizontal Vacuum Furnace Induction Heat Treatment Graphitization Furnace

Minimum Order Quantity :	Negotiable	Price :	Negotiable
Packaging Details :	Carton, pallet, wooden case or according to customer's package requirements	Delivery Time :	30 working days
Payment Terms :	30% deposit + 70% T/T before shipping	Supply Ability :	20 sets per month

Place of Origin:	CHINA	Brand Name:	OEM
Certification:	CE Certification	Model Number:	OEM

Detail Information
Name:	Vacuum Heat Treatment Furnace	Maximu Temperature:	3000 Degree Celsius
Dimension(LWH):	Custom Made	Type:	Resistance Furnace
Weight:	2~20T	Voltage:	380V
Highlight:	vacuum melting furnace , vacuum heat treatment furnace

Product Description

3000C horizontal vacuum induction heat treatment graphitization furnace

1. Configuration:

380V±10%,50Hz/60Hz 3 phase 5 wire

One control cabinet to one furnace and optional for one to two type or one to four type.

2. Application:

The equipment mainly used in the HT heating treatment on carbon material, carbon fiber, negative electrode materials, graphite powder, contacting terminal material and such related material.

3.Technology parameter:

Volume (L)	192	350	484
Rated Temperature (°C)	3000	3000	3000
Limit Temperature (°C)	2800	2800	2800
Effective Heating Zone (Mm)	400X400X1200	500X500X1400	550X550X1600
Power (KW)	200	350	450
Frequency (HZ)	1500	1000	1000
Temperature Control Method	Japanese island electric thermostat
Heating Method	Induction heating
Vacuum System	Rotary vane vacuum pump (high vacuum requirement with Roots vacuum pump and oil diffusion pump)
Sintering Atmosphere	N2, Ar2 and other gases
Rated Power Supply Voltage (V)	380
Rated Heating Voltage (V)	750
Vacuum Limit (Pa)	100 (vacuum cold state)
