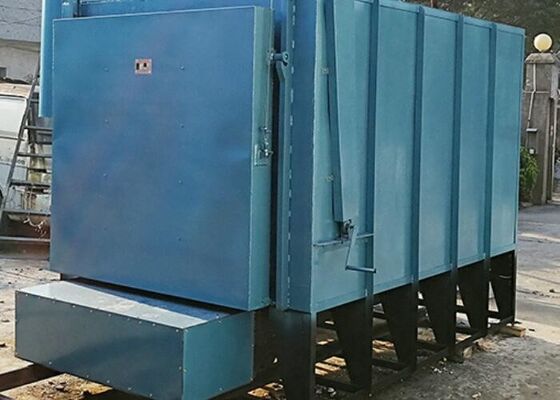

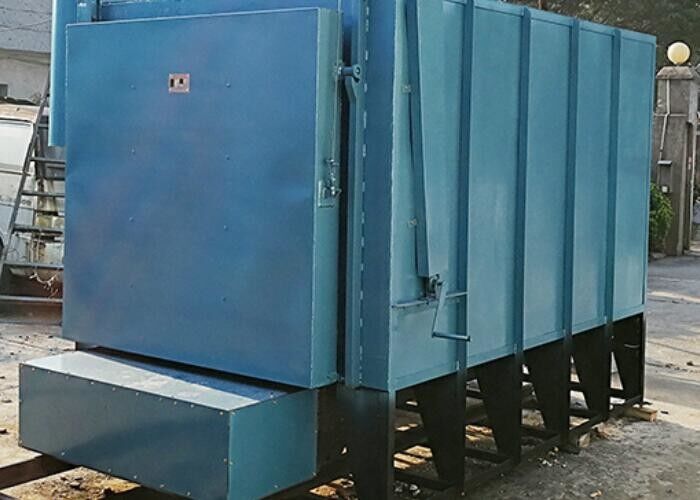

Industrial Heat Treatment Car Bottom Furnace Large Scale For Annealing / Normalizing

Product Description

Customized Dimension , Car Bottom Furnace , Large Scale

Main use

To meet the need of aero-space industry development, Aojie develops the large scale car bottom type electric heating furnace which can satisfy the requirement for high precision of furnace temperature uniformity. Effective working chamber size: 4500mm (L) × 2200mm (W) ×1300mm (H) Maximum operating temperature: 1150℃ Furnace temperature uniformity: ≤±5℃.

Actual measurement data: ±3.15℃ at 500℃ furnace temperature, ±2.80℃ at 940℃ and ±2.70℃ at 1010℃.

Note: Customized dimensions of effective working  zone upon client's requirements

Our Services

Our company provides test-running service to the customers. We would send our engineers to the buyer's site for installation, test-running and training service. The customer should bear the following costs: round-way air ticket fare, and board and lodging, and daily allowance.

The warranty period is 1 year after completion of test-running.

We provide technical support life-time.

Q: What is the power supply of the equipment?

A: The power supply of the furnace is to be decided by the customer's side. We are able to adjust the voltage (volt, and phase) through a transformer so that the furnace is ready for use at the end user's site.

Q: What information should the customer provide to get an accurate quotation from us?

A: The customer should provide the max and min size of heat exchangers, drawings, pictures, industrial voltage, planned output, etc.
