Customized High Temperature Sintering Furnace

Minimum Order Quantity :	Negotiable	Price :	Negotiable
Packaging Details :	Carton, pallet, wooden case or according to customer's package requirements	Delivery Time :	30 working days
Payment Terms :	30% deposit + 70% T/T before shipping	Supply Ability :	20 sets per month

Place of Origin:	CHINA	Brand Name:	OEM
Certification:	CE Certification	Model Number:	OEM

Detail Information
Name:	High Temperature Vacuum Furnace	Weight:	2~20T
Voltage:	380v	Working Atmosphere:	N2, Ar2
Certification:	CE And ISO
Highlight:	high temperature vacuum furnace , vacuum brazing furnace

Product Description

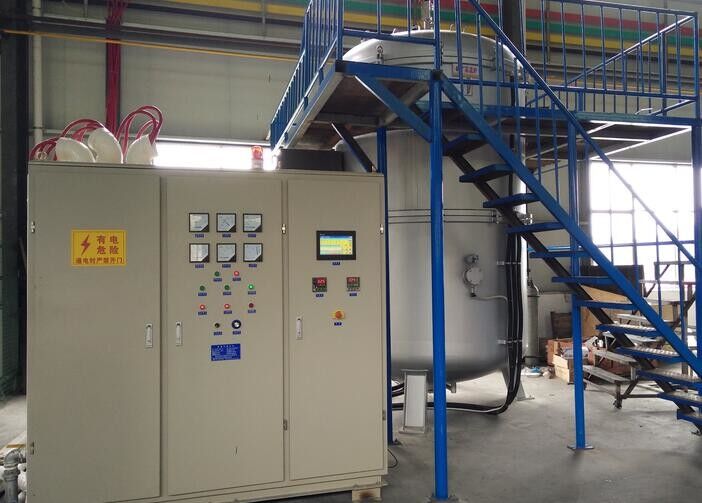

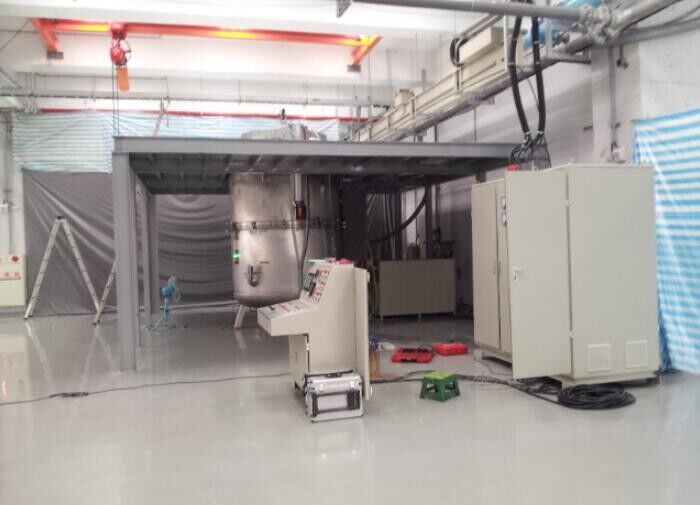

high temperature induction type cemented alloy vacuum sintering furnace

The application field of vacuum sintering furnace:

Vacuum sintering furnace is used for vacuum sintering of tungsten alloy,silicon carbide,molybdenum alloy,titanium alloy,cemented carbide and carbon material.

Main configuration of vacuum sintering furnace:

1. Furnace door:Rotary hinge; manual / automatic lock tight

2. Furnace shell:all carbon steel/stainless steel inner/all stainless steel

Product specification of vacuum sintering furnace:

Volume (L)	1920
Rated Temperature (°C)	2400
Limit Temperature (°C)	2450
Effective Heating Zone (Mm)	800X800X3000
Power (KW)	800
Frequency (HZ)	1000
Temperature Control Method	Japan Island Electric Thermostat
Heating Method	Induction heating
Vacuum System	Rotary vane vacuum pump or spool type vacuum pump + Roots vacuum pump (vacuum degree requirement plus oil distribution pump)
Sintering Atmosphere	N2, Ar2 and other gases
Rated Power Supply Voltage (V)	380
Rated Heating Voltage (V)	According to the design, configure the transformer
Vacuum Limit (Pa)	6X10ˉ2 (vacuum cold state)

Customized High Temperature Sintering Furnace
