Longlife Industrial Microwave Muffle Furnace Debindering Zirconia Blanks

Minimum Order Quantity :	Negotiable	Price :	Negotiable
Packaging Details :	Carton, pallet, wooden case or according to customer's package requirements	Delivery Time :	30 working days
Payment Terms :	30% deposit + 70% T/T before shipping	Supply Ability :	20 sets per month

Place of Origin:	CHINA	Brand Name:	OEM
Certification:	CE Certification	Model Number:	OEM

Detail Information
Name:	Microwave Chamber Furnace	Heating Source:	Microwave
Working Temperature:	0~1650℃	Temperature Control Precision:	±0.1%
Temperature Measurement Method:	Infrared Thermometer	Warranty:	1 Year
Highlight:	high temperature muffle furnace , electric muffle furnace

Product Description

Box Type Furnace, Industrial Microwave Furnace Debindering Zirconia Blanks

Description

The Microwave Box Type Furnace can be applied for industry sintering, while features of high heating efficiency, rapid heating speed and good heating uniformity makes it reliable for application.

Applications

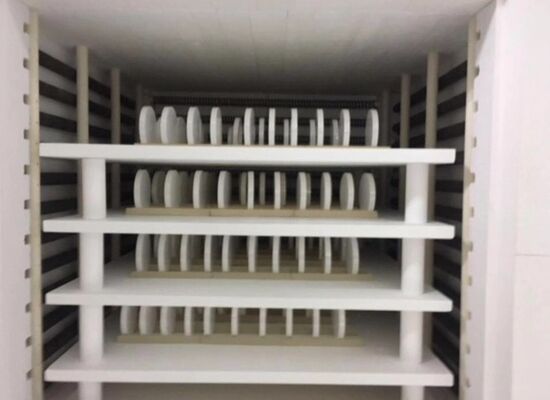

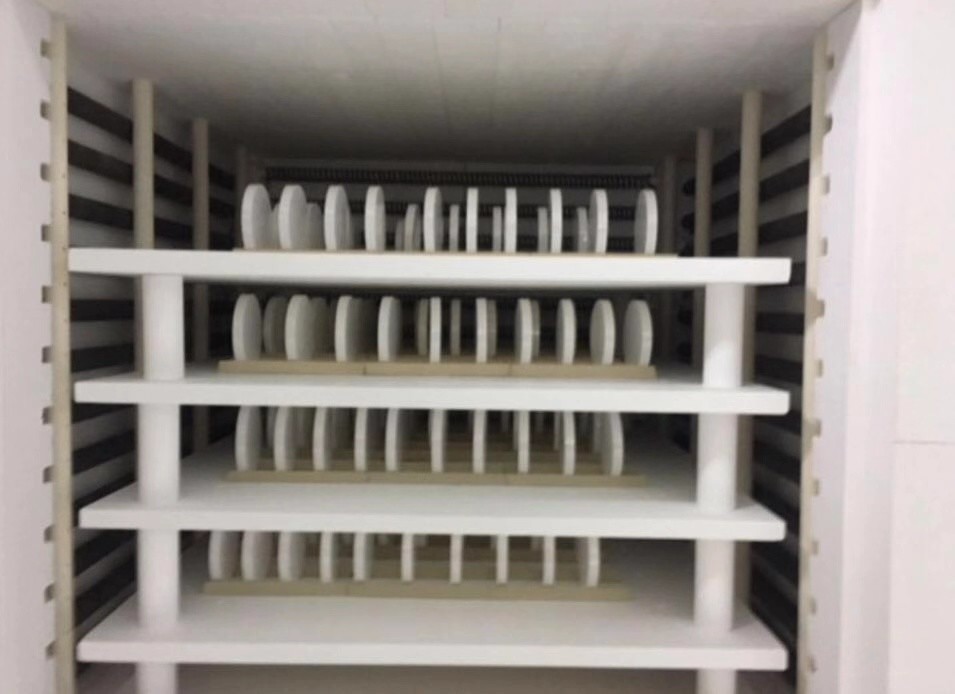

The HY-XS6017 is suitable for debindering process of zirconia blanks under air atmosphere conditions with chamber volume of 3 liters.

Technical Parameters

Parameters
Power	Voltage	380V±10V 50Hz
Power	Rated Power	9KW
Microwave System	Microwave Output Power	0.10~5.60KW continuously adjustable
	Microwave Frequency	2.45GHz
	Microwave Leakage Prevention	microwave leakage intensity<2mW/cm²
Thermal Insulation System	T_max	1700°C
	Working Temperature	0~1650°C
	Heating Space(L×W×H)	160×160×120mm
Temperature Control System	Temperature Measurement Method	infrared thermometer
	Temperature Measurement Range	300°C~1800°C
	Temperature Control Precision	±0.1%
ControlSystem	Auto, Manual and Isothermal Controlling Mode, PLC+Touch Screen	40 segments of programmable technical parameters, data storage and export, real-time curve data display, dynamic data display
Safety System	Magnetron Alarm	over temperature alarm
Safety System	Furnace Door Protection Alarm	furnace door shutdown sensor
Cooling System	Cooling Water Requirments	flow rate≥ 2m³/h,T≤35°C
