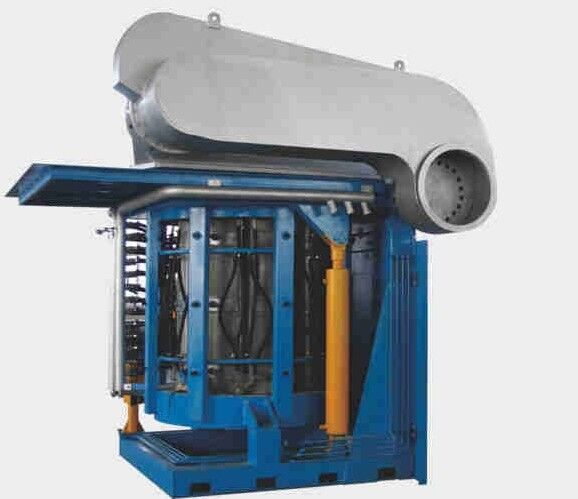

3T Capacity 2000KW Industrial Melting Furnace For Iron Aluminum Copper Scrap

Minimum Order Quantity :	Negotiable	Price :	Negotiable
Packaging Details :	Carton, pallet, wooden case or according to customer's package requirements	Delivery Time :	30 working days
Payment Terms :	30% deposit + 70% T/T before shipping	Supply Ability :	20 sets per month

Place of Origin:	CHINA	Brand Name:	OEM
Certification:	CE Certification	Model Number:	OEM

Detail Information
Type:	Induction Melting Furnace	Voltage:	6*750v, 50HZ
MF Frequency:	500HZ	Medium Voltage:	1480v Phase
DC Voltage:	990V Phase	DC Current:	1010A Phase
Rated Temperature:	1800°c	Color:	Customizable
Melting Material:	Gold, Silver, Copper, Iron And Aluminum Etc	Rated Power:	2000KW
Rated Capacity:	3T
Highlight:	steel melting furnace , steel induction furnace

Product Description

1. Advantage of Steel Shell Melting Furnace:.

1. Turn on & turn off the smelter easily,and power failure will not affect the service life of electric furnace.

2. Adopt constant power to control the circuit,maintain constant power while melting and keep faster melting rate.

3. Set up over voltage, over current and water deficient protector, and run safely.

4. The motherboard adopts CAD technology, integrated circuit board,low-fault-rate,easy-manipulating, effortless maintenance.

5. Zero voltage starts up softly, high initial power, don´t impact on the electric network.

6. Apply to melting ferrous metal and non-ferrous metal like copper, aluminum, zinc,steel, iron, stainless steel etc.

2. Technical Parameter of Steel Shell Induction Melting Furnace:

Rated Capacity	Rated Power	MF Frequency	Power Input Voltage	MF Output Voltage	Melting Time	Electricity Consumption	Transformer Capacity Required
T	KW	KHZ	V	V	Minutes/T	KWH/T	KVA
0.25	250	1	380	750	65	680	300
0.5	400	1	380	1600	65	680	400
0.75	500	1	380	1600	65	650	600
1	700	0.7	660	2400	60	640	800
1.5	1000	0.7	660	2400	60	640	1000
2	1400	0.5	750	2400	65	640	1800
3	2000	0.5	950	3200	65	640	1800
5	3000	0.5	950	3200	70	620	2500
6	4000	0.5	950	3600	70	600	3150
8	4500	0.3	950	3600	70	580	4000
10	6000	0.3	950	3600	65	550	5000
12	8000	0.3	950	5000	60	520	6300
15	9000	0.3	950	5000	70	500	8000

3. Large Induction Melting Furnace Application:

(1) iron, pig iron, cast iron;

(2) steel, stainless steel, cast steel, carbon steel and bearing steel;

(3) gold, silver, platinum;

(4) copper, brass, bronze;

(5) aluminum, aluminum alloy;

(6) zinc, lead, tin, magnesium, nickel, titanium.
