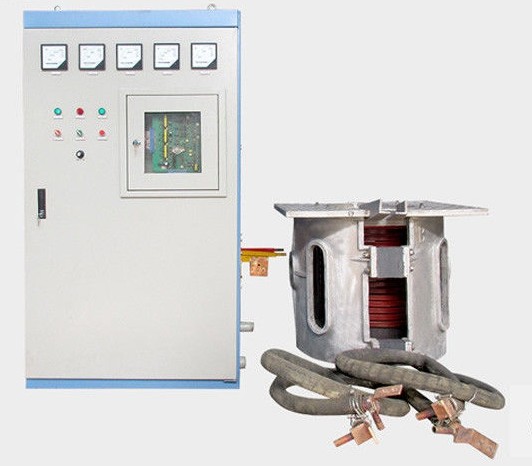

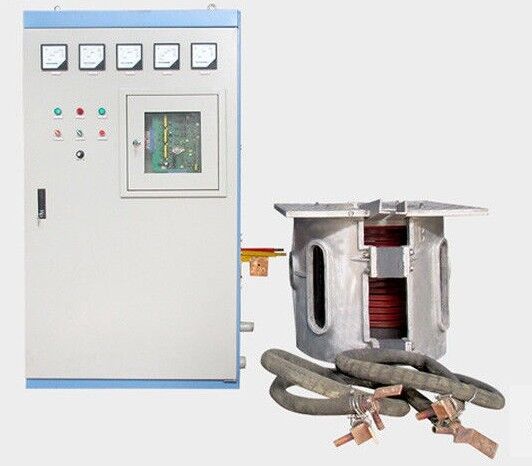

Metal Induction Large Industrial Melting Furnace Medium Frequency For Industrial Copper Scrap

Minimum Order Quantity :	Negotiable	Price :	Negotiable
Packaging Details :	Carton, pallet, wooden case or according to customer's package requirements	Delivery Time :	30 working days
Payment Terms :	30% deposit + 70% T/T before shipping	Supply Ability :	20 sets per month

Place of Origin:	CHINA	Brand Name:	OEM
Certification:	CE Certification	Model Number:	OEM

Detail Information
Type:	Induction Melting Furnace	Voltage:	6*750v, 50HZ
MF Frequency:	500HZ	Medium Voltage:	1900v Phase
DC Voltage:	1260V Phase	DC Current:	1200A Phase
Rated Temperature:	1800°c	Color:	Customizable
Melting Material:	Gold, Silver, Copper, Iron And Aluminum Etc	Rated Power:	3000KW
Rated Capacity:	5T
Highlight:	industrial induction furnace , steel induction furnace

Product Description

Industrial Medium Frequency Copper Scrap Metal Induction Melting Furnace

1. Function of Steel Shell Induction Melting Furnace:
Intermediate Frequency Electrical Melting Furnace, also called as Induction Smelting Furnace, which converting three phase power current into single phase intermediate frequency current and enabling metal to produce eddy current loss through electromagnetic field induction to achieve heating and melting.
It is applicable to melting, heating or insulting of steel, copper, iron, aluminum, zinc, tin, nickel silver and other ferrous, nonferrous metal. It can also be used for other heating treatment before forging, sintering and tube-bending forming in the casting and melting industries.

2. Technical Parameter of Steel Shell Induction Melting Furnace:

Rated Capacity	Rated Power	MF Frequency	Power Input Voltage	MF Output Voltage	Melting Time	Electricity Consumption	Transformer Capacity Required
T	KW	KHZ	V	V	Minutes/T	KWH/T	KVA
0.25	250	1	380	750	65	680	300
0.5	400	1	380	1600	65	680	400
0.75	500	1	380	1600	65	650	600
1	700	0.7	660	2400	60	640	800
1.5	1000	0.7	660	2400	60	640	1000
2	1400	0.5	750	2400	65	640	1800
3	2000	0.5	950	3200	65	640	1800
5	3000	0.5	950	3200	70	620	2500
6	4000	0.5	950	3600	70	600	3150
8	4500	0.3	950	3600	70	580	4000
10	6000	0.3	950	3600	65	550	5000
12	8000	0.3	950	5000	60	520	6300
15	9000	0.3	950	5000	70	500	8000

3. Feature of Steel Shell Induction Melting Furnace:

According to the theoretical calculation and field test, it can save half of the transformer capacity.Because of adopting SCR series rectifier , series resonant inverter it is with high power factor and keeps over 0.98 with high order harmonic wave pollution.It is no need to add reactive power compensation device and harmonic wave control device.The current of induction coils are small and the melting time is short.It can save electricity 20%.
Rugged and elegant, especially for large-capacity furnaces, it requires a strong rigid structure. From the safety point of the tilting furnace, try to use steel shell furnace.
The presence of the furnace cover reduces heat loss and increases the safety of the equipment.
