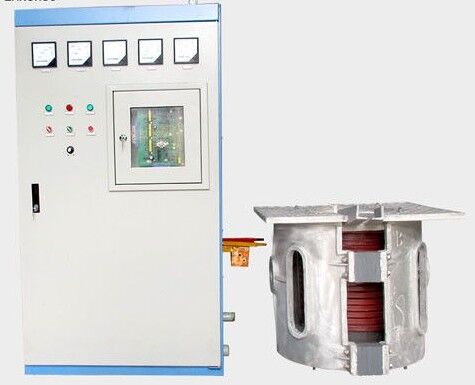

Metal Magnetic Induction Industrial Melting Furnace Machine 0.1 Ton Highly Reliable

Product Description

0.1 ton metal magnetic induction heating melting machine furnace


1. Brief Introduction of 0.1Ton Medium Frequency Induction Melting Furnace:

 Safety protection functions of induction melting furnace:
1). The main circuit and short circuit protection
2). SCR overvoltage protection
3). Main circuit phase fault protection
4). The main circuit phase loss protection
5). Low water pressure protection
6). SCR overcurrent protection
7). Highly reliable electrical control board
2. Technical Parameter of Large Induction Melting Furnace:

3. Large Induction Melting Furnace Application:

(1) iron, pig iron, cast iron;

(2) steel, stainless steel, cast steel, carbon steel and bearing steel;

(3) gold, silver, platinum;

(4) copper, brass, bronze;

(5) aluminum, aluminum alloy;

(6) zinc, lead, tin, magnesium, nickel, titanium.

4. Advantage of Large Induction Melting Furnace :
In the operation, the 3-phase current is balanced. Due to the advanced design, the 3-phase power supply’s sequence could be connected randomly. Moreover there is no limit to connect to capacitor cabinet and furnace. All of these jobs can be judged to be adapted automatically by the device itself. It makes the installation and maintenance very easily.
5. Part of the melting furnace:
1). Furnace Parts: The mechanical parts of the MF furnace consisted of furnace pot,water power introduced into the system, titling device and other parts.
2). Furnace Ports: Furnace port including furnace shell, induction coil etc.
3). Furnace Shell:

Main Power Cabinet	Furnace Shell	Reducer	Water Cooled Cable	Crucible Mould	Induction Coil
