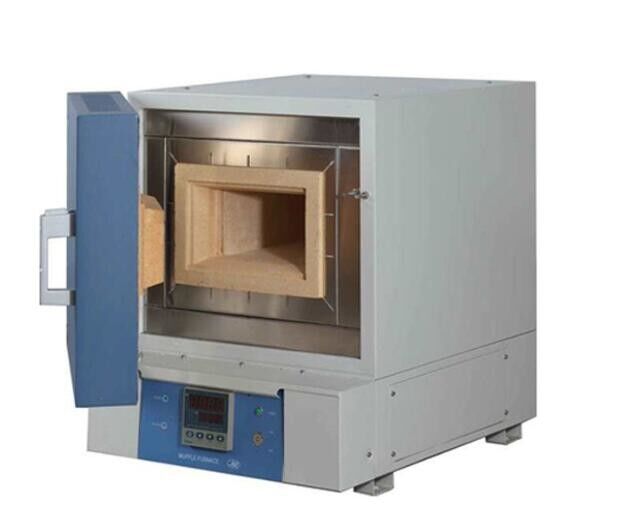

Fast Carbonization Microwave Muffle Furnace Cooling System Thermocouple Control

Minimum Order Quantity :	Negotiable	Price :	Negotiable
Packaging Details :	Carton, pallet, wooden case or according to customer's package requirements	Delivery Time :	30 working days
Payment Terms :	30% deposit + 70% T/T before shipping	Supply Ability :	20 sets per month

Place of Origin:	CHINA	Brand Name:	OEM
Certification:	CE Certification	Model Number:	OEM

Detail Information
Name:	Industrial Microwave Furnace	Heating Source:	Microwave
Working Temperature:	0~1350℃	Temperature Measurement Method:	Thermocouple
Chamber Size:	300×300×280mm	Voltage:	380V±10V
Highlight:	high temperature muffle furnace , electric muffle furnace

Product Description

Microwave Box Furnace, Fast Carbonization, Cooling System, Thermocouple Control

The maximum temperature Microwave Box Furnace is 1400 degrees and the furnace can work constantly under 1350 degrees.

has a large heating volume of 300×300×280mm.

uses thermocouple for temperature measurement and has a ±0.1% temperature control precision.

Microwave Box Furnace HY-CE6014 is suitable for fast carbonization with high heating efficiency and low energy consumption.

Parameters
Power	Voltage	380V±10V 50Hz
Power	Rated Power	7KW
Microwave System	Microwave Output Power	0.10~5.60KW continuously adjustable
	Microwave Frequency	2.45GHz
	Microwave Leakage Prevention	microwave leakage intensity<2mW/cm²
ControlSystem	Auto, Manual and Isothermal Controlling Mode, PLC+Touch Screen	40 segments of programmable technical parameters, data storage and export, real-time curve data display, dynamic data display
Safety System	Magnetron Alarm	over temperature alarm
Safety System	Furnace Door Protection Alarm	furnace door shutdown sensor
Cooling System	Cooling Water Requirments	flow rate≥ 2m³/h, T≤35°C
Overall Dimension	Furnace Body(L×W×H)	ca. 1100×600×1750mm
