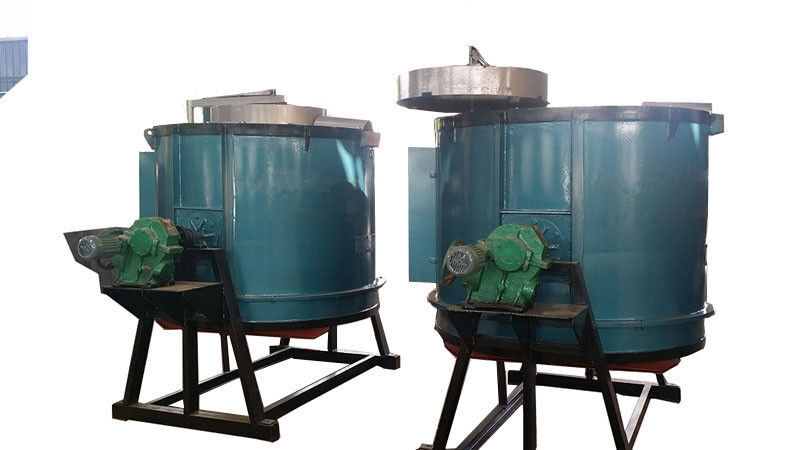

2000KW Induction Large Copper Melting Furnace For Metal Melting 3T Capacity

Minimum Order Quantity :	Negotiable	Price :	Negotiable
Packaging Details :	Carton, pallet, wooden case or according to customer's package requirements	Delivery Time :	30 working days
Payment Terms :	30% deposit + 70% T/T before shipping	Supply Ability :	20 sets per month

Place of Origin:	CHINA	Brand Name:	OEM
Certification:	CE Certification	Model Number:	OEM

Detail Information
Type:	Induction Melting Furnace	Voltage:	6*750v, 50HZ
MF Frequency:	500HZ	Medium Voltage:	1480v Phase
DC Voltage:	990V Phase	DC Current:	1010A Phase
Rated Temperature:	1800°c	Color:	Customizable
Melting Material:	Gold, Silver, Copper, Iron And Aluminum Etc	Rated Power:	2000KW
Rated Capacity:	3T
Highlight:	steel melting furnace , steel induction furnace

Product Description

3T 2000KW large capacity Induction Melting Furnace for metal melting

1. Advantage of Steel Shell Melting Furnace:
This product is a new type professional furnace, designed and manufactured using advanced technology, with the international advanced level. Uniquely controls the flow direction of the melt in the IF/MF furnace, achieving homogenization and dispersion distribution of the alloy composition, effectively improving the performance of the material in the molten casting state, greatly reducing the pressure of the material's later heat treatment, and effectively reducing energy consumption and production costs. Furnace structure can choose hydraulic dumping mode or the next discharge mode. The electric furnace has a simple structure, convenient maintenance and easy operation.

This melting furnace is adopted by electromagnetic induction principle which can be used to melt or heat iron, cast iron and other metal scrap .

2. Technical Parameter of Steel Shell Induction Melting Furnace:

Rated Capacity	Rated Power	MF Frequency	Power Input Voltage	MF Output Voltage	Melting Time	Electricity Consumption	Transformer Capacity Required
T	KW	KHZ	V	V	Minutes/T	KWH/T	KVA
0.25	250	1	380	750	65	680	300
0.5	400	1	380	1600	65	680	400
0.75	500	1	380	1600	65	650	600
1	700	0.7	660	2400	60	640	800
1.5	1000	0.7	660	2400	60	640	1000
2	1400	0.5	750	2400	65	640	1800
3	2000	0.5	950	3200	65	640	1800
5	3000	0.5	950	3200	70	620	2500
6	4000	0.5	950	3600	70	600	3150
8	4500	0.3	950	3600	70	580	4000
10	6000	0.3	950	3600	65	550	5000
12	8000	0.3	950	5000	60	520	6300
15	9000	0.3	950	5000	70	500	8000

3. Large Induction Melting Furnace Application:

(1) iron, pig iron, cast iron;

(2) steel, stainless steel, cast steel, carbon steel and bearing steel;

(3) gold, silver, platinum;

(4) copper, brass, bronze;

(5) aluminum, aluminum alloy;

(6) zinc, lead, tin, magnesium, nickel, titanium.
